Steel Ball Hardness Eddy Current Sorter GQYDFX-01

Steel Ball Hardness Eddy Current Sorter GQYDFX-01

The eddy current hardness sorter is an instrument for measuring the hardness of a workpiece based on the principle of eddy current testing. Usually used to measure the hardness of steel, sorting the hardness of different grades.


The eddy current hardness sorter is an instrument for measuring the hardness of a workpiece based on the principle of eddy current testing. Usually used to measure the hardness of steel, sorting the hardness of different grades. Steel Ball Hardness Vortex Sorting Machine is suitable for sorting and testing the hardness, material and other items of various steel balls, and realizes zero-defect control of the performance of the whole batch of parts.


Steel Ball Hardness Eddy Current Sorter GQYDFX-01 Description


Compared with the pre-multi-frequency eddy current sorter, this eddy current sorting equipment is more suitable for sorting and testing the hardness, material and other items of various steel balls, and realizes zero-defect control of the performance of the whole batch of parts.


1. Hardness test: the detection resolution reaches 1~2HRC (other parameter characteristics remain stable and consistent);

2. Material sorting: a mixture capable of sorting heat treatment conditions;

Composition: The system consists of six parts: eddy current sorter, probe, feeder, mechanical device, electrical control and aluminum profile rack. The spherical parts arranged automatically by the hopper slide into the charging path in turn. After detection by the eddy current probe, the workpiece is controlled by the sorting cylinder to enter the corresponding qualified or unqualified passage.


Steel Ball Hardness Eddy Current Sorter GQYDFX-01 Performance


Separation speed

Hardness sorting 50 pieces/min; distinguish heat treatment

and no heat treatment 100 pieces/min

Frequency range

1Hz~1MHz

Gain

0~99dB,step size 0.1dB

Phase rotation

0~360°step1 °

Advanced filtering

Have

Low pass

1Hz~10000Hz

High pass

0.1Hz~650Hz

Synchronized alarm output controlled by an internal and external clock

High-precision end and end-to-tail signal removal

High Precision Real-time and Delayed Alarm Output

Fast Digital/Analog Electronic Balance

Delayed Hidden Removal Function with Memory Trajectory

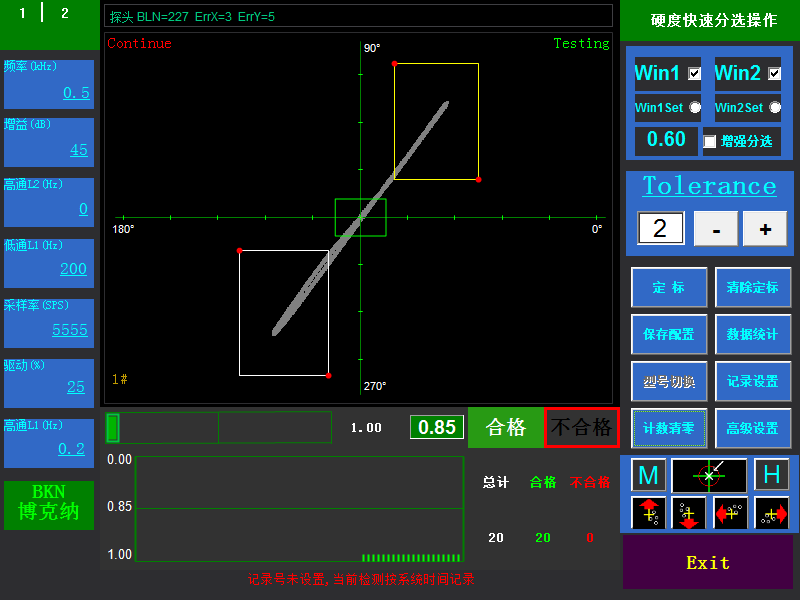

Real-time impedance plane display

This eddy current sorting equipment can match any probe.

Remote Automatic Help System

The man-machine interface in Chinese and English

Non-equal Amplitude Phase/Amplitude Alarm Domain
