Roller Eddy Current Hardness Separator GZYDFX-01

Roller Eddy Current Hardness Separator GZYDFX-01

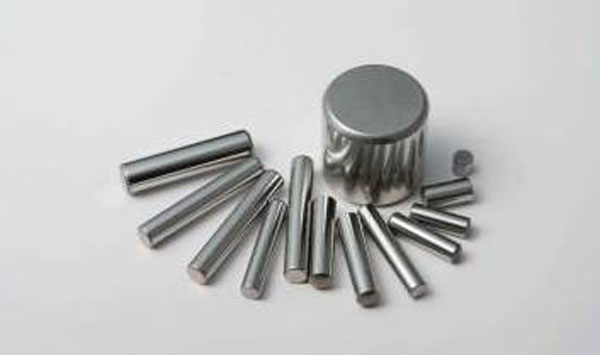

The Roller Eddy Current Hardness Sorting Machine is suitable for sorting and testing the hardness and material of cylindrical steel parts such as cylindrical rollers, tapered rollers, and needle rollers. It realizes zero-defect control of the performance of the entire batch.


The roller hardness sorter has a calibration device, input compensation parameters, automatic/manual temperature compensation, light intensity compensation, and automatic temperature measurement and correction. The digital potentiometer is used to adjust the gain of the amplifier through program control. The gain parameters can be set for different battery chips, and the software working mode can be changed to adapt to various battery test applications without changing the hardware.


Roller Eddy Current Hardness Separator GZYDFX-01 Function


The eddy current system consists of six parts: an eddy current sorter, probe, feeder, mechanical device, electrical control, and aluminum profile rack. The spherical parts arranged automatically by the hopper slide into the charging path in turn. After detection by the eddy current probe, the workpiece is controlled by the sorting cylinder to enter the corresponding qualified or unqualified passage.




  • Hardness test: Roller Eddy Current Hardness Separator performs highly accurate hardness testing with a detection resolution of 1~2HRC, ensuring that other parameter characteristics remain stable and consistent throughout the process.

  • Material sorting: Compared to other eddy current NDT equipment, the Roller Eddy Current Hardness Separator can sort materials more efficiently, accurately distinguishing between materials with different heat treatment conditions.


Roller Eddy Current Hardness Separator GZYDFX-01 Performance


ParameterSpecification
Separation Speed180 pieces/min
Sorting Accuracy±2 HRc
Frequency Range10 Hz ~ 10 MHz
Gain0 ~ 99 dB, step size 0.1 dB
Phase Rotation0° ~ 360°, step size 1°
Advanced FilteringAvailable
Low Pass Filter1 Hz ~ 10,000 Hz
High Pass Filter0.1 Hz ~ 650 Hz
Synchronized Alarm OutputControlled by internal and external clock
High-precision End Signal RemovalAvailable
High-precision Real-time/Delayed Alarm OutputAvailable
Digital/Analog Electronic BalanceFast
Delayed Hidden Removal FunctionWith memory trajectory
Real-time Impedance Plane DisplayAvailable
Probe CompatibilityCan match any probe
Remote Automatic Help SystemAvailable
Man-machine InterfaceChinese and English
Non-equal Amplitude Phase/Amplitude Alarm DomainAvailable
