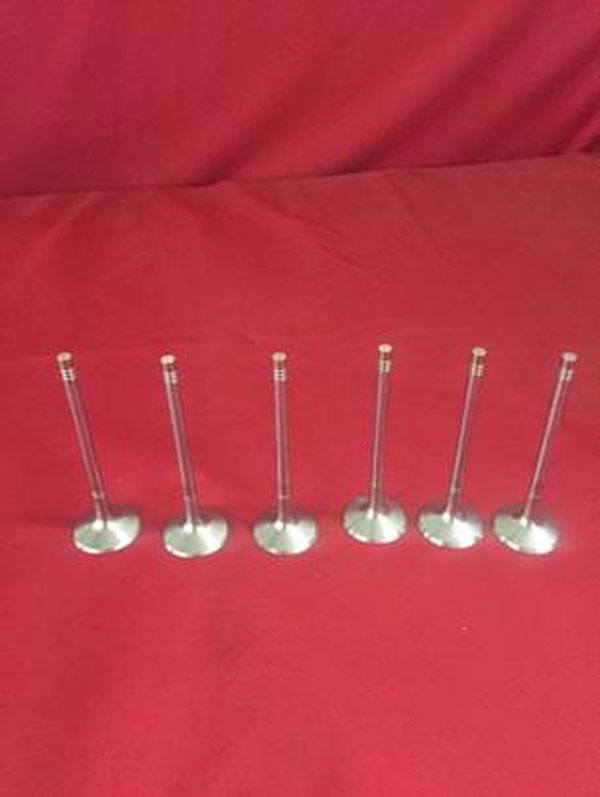

Flame Quenching Engine Valve Rod End Eddy Current Hardness Separator QMYDFX-01

Flame Quenching Engine Valve Rod End Eddy Current Hardness Separator QMYDFX-01

Flame Quenching Engine Valve Rod End Eddy Current Hardness Separator QMYDFX-01 Brief


Use


1. Hardness testing: the detection resolution is 1-2 HRC (other parameters are stable and consistent);

2. Material sorting: mixtures that can be sorted in a heat treatment state.




Eddy current detection is to place a coil with the alternating current on the metal workpiece to be detected, and an alternating magnetic field generated in and around the coil to generate a swirling induced alternating current in the test piece. Eddy current testing is mainly used for rapid detection of metal pipes, rods and wires on the production line, as well as flaw detection of large-volume parts such as bearing steel balls and valves, as well as material sorting and hardness measurement. The eddy current hardness sorter is an instrument for measuring the hardness of a workpiece based on the principle of eddy current testing. Usually used to measure the hardness of steel, sorting the hardness of different grades. The vortex hardness sorter has the advantage of full automation. It not only automatically detects the workpiece, automatically records the data, but also automatically sorts and classifies the workpiece to be tested.


Flame Quenching Engine Valve Rod End Eddy Current Hardness Separator QMYDFX-01 Performance


Sorting speed

Hardness sorting 60/min

Detection speed

1-30m/min

Frequency range

1Hz~1MHz

Gain

0~99dB,step size 0.1dB

Advanced filtering

have

High Pass

0.1Hz~650Hz

Low Pass

1Hz~10000Hz

Phase rotation

0-360° step1°


Features of Flame Quenching Engine Valve Rod End Eddy Current Hardness Separator QMYDFX-01


Synchronized alarm output controlled by an internal and external clock

High-precision end and end-to-tail signal removal

High Precision Real-time and Delayed Alarm Output

Fast Digital/Analog Electronic Balance

Delayed Hidden Removal Function with Memory Trajectory

Real-time impedance plane display

The instrument can match any probe.

Remote Automatic Help System

The man-machine interface in Chinese and English

Non-equal Amplitude Phase/Amplitude Alarm Domain

Computer full digital parameter adjustment
